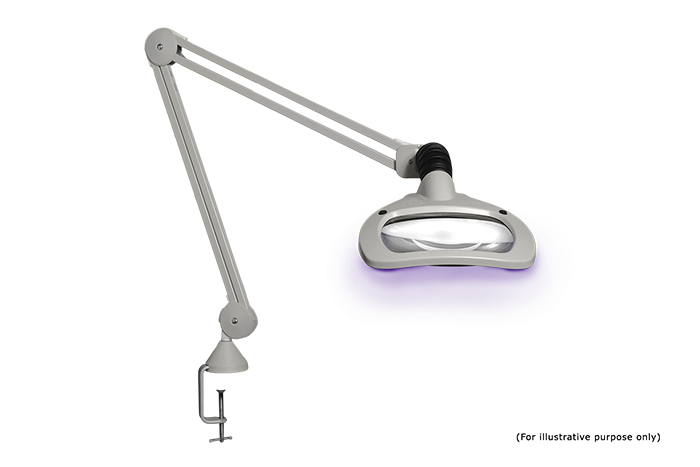

Luxo WAVE LED UV, 45" arm, 3.5-D lens, and edge clamp mount, light grey
WAVE LED
Design: Aleksander Borgenhov
Wave LED UV is ideal for the inspection of conformal coatings as well as for the detailed inspection of welds, solder joints and other areas of stress concentration. Wave LED UV offers shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right.
A version of WAVE LED UV-ESD is also available and is ideal for use in static-sensitive environments where electrostatic discharges can prove fatal for electronic components.
Wave LED is a magnifier for industrial applications. Wave LED offer shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right. The 3D-feature is especially welcome when working with circuit boards and similar delicate objects.
Maximum flexibility and precision
No knobs to tighten, nothing to adjust. The self-balancing shade and hands-free neck assembly make exact positioning easy. The spring-balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting.
WAVE LED is supplied with a 3.5- (1.88X) or 5-diopter (2.25X) white crown optical-quality glass lens. A cloth shade cover is provided to protect the lens from unwanted dust and debris. Colors: Light grey or white.
UV light version
UV Magnifiers are primarily designed for the inspection of conformal coatings. The 400nm UVA lightsource is also ideal for detailed inspection of welds, solder joints and other areas of stress concentration. UV tracer conformal coatings observed under the WAVE UV lightsource glow a dark purple color allowing for easy identification of uncoated areas.
LED: Lightsource of the future
Wave LED is equipped with two 6W LED modules, which are individually controllable. A 9/4 hour automatic shut-off feature and step dimming (0-50-100%) further ensure energy savings.
ESD-Safe models designed for use in static-sensitive environments also available. Color: Black.
UV models designed for the inspection of conformal coatings also available. Color: Light grey.
3D feature
Wave LED provides 3D magnification when only one lightsource is lit.
Auto shut-off
Wave LED is dimmable, and can be set to turn itself off after 4 or 9 hours in order to save energy.
